Audio connections

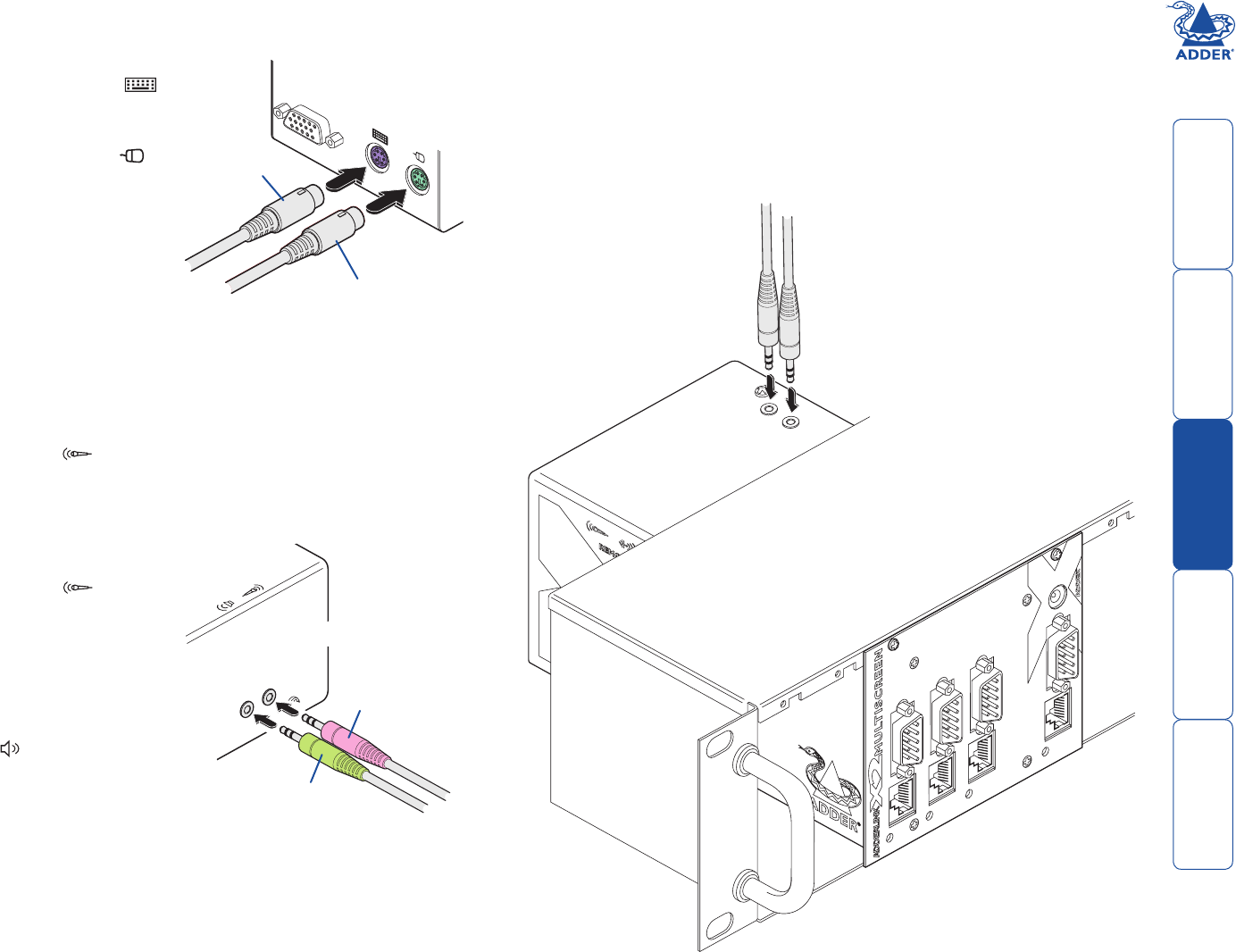

At the REMOTE module, audio connections are available from the two 3.5”
jack sockets mounted on the side (same side as the switch bank). Note: The
microphone input (labelled ) has a dual function whereby it can either
support a mono-channel microphone or alternatively receive stereo line input.
Switch 3 on the LOCAL module controls the setting of this port: LOCAL switch 3
OFF - microphone, LOCAL switch 3 ON - stereo line in.
1 Connect the microphone (or stereo
line input) plug to the REMOTE
module socket labelled .
Note: Ensure that the setting of
switch 3 on the LOCAL module
matches the input to this socket:
OFF-microphone;
ON-stereo line input).
2 Connect the speaker plug to the
socket labelled .
Connections at the REMOTE module
Keyboard and mouse connections
1 Connect the keyboard lead to the
purple mini-DIN socket labelled
on the REMOTE module.
2 Connect the keyboard lead to the
green mini-DIN socket labelled on
the REMOTE module.
Note: When the REMOTE module is rack mounted, the audio connections
must be made after the module has been xed in place. Access is required
to the rear and above the rack. Remember to remove the audio connections
before attempting to slide out the REMOTE module.
REMOTE
Microphone
(or stereo line-in)
connection
Speaker
Connection
VIDEO OUT
1
REMOTE
Connection
from keyboard
Connection
from mouse
1
ON
4
2
3
POWER
SERIAL 1
SERIAL 2
SERIAL 3
SERIAL 4
CAT X LI NK
1
CAT X LI NK
2
CAT X LI NK
3
CAT X LI NK
4
Page view 11
