Installation

Mounting

There are two main mounting methods:

• Thesuppliedfourself-adhesiverubberfeet

• Optionalrackbrackets(notMultiscreenmodels)

Connections

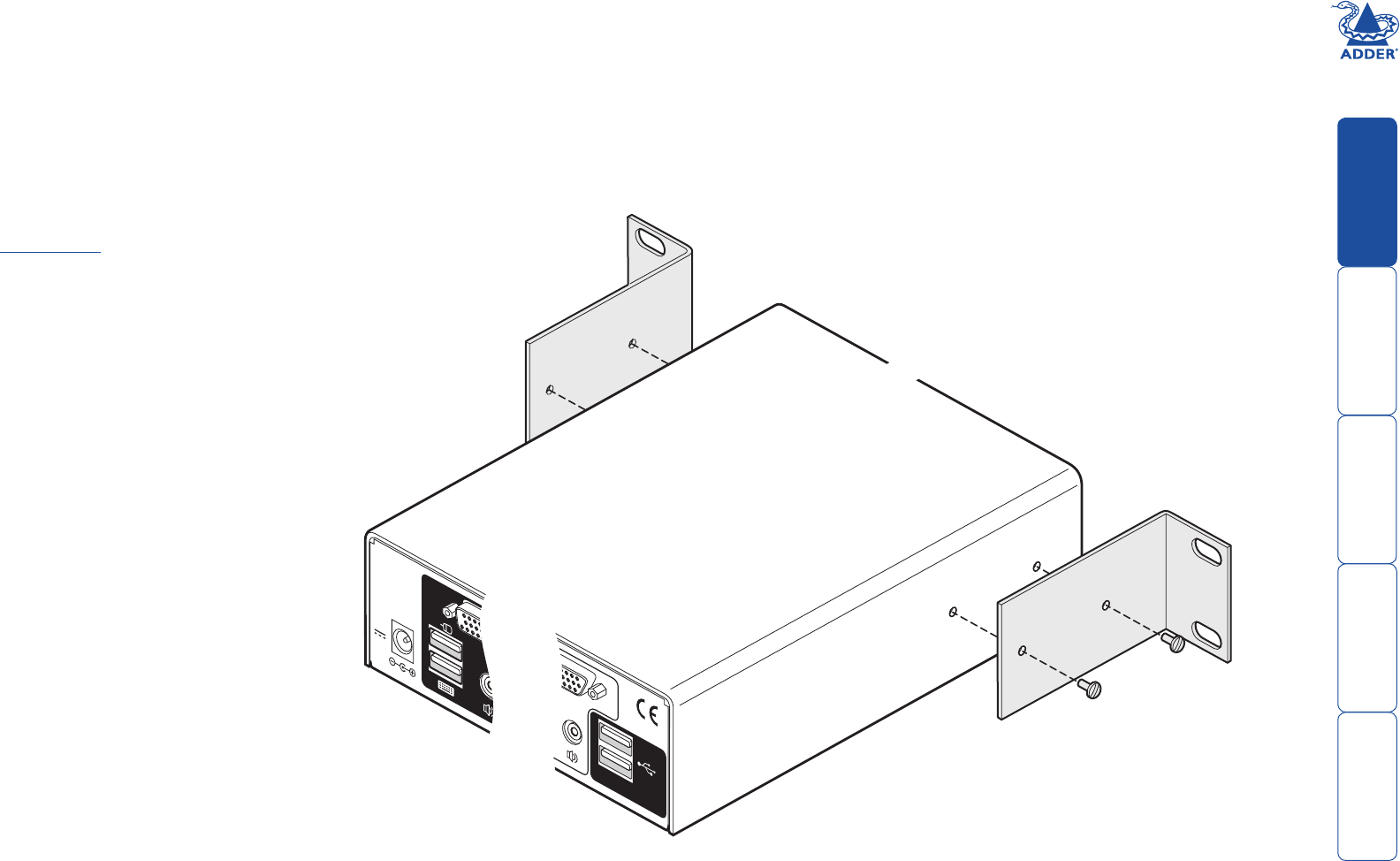

Rack brackets (not Multiscreen models)

The optional brackets (plus four screws), allow the

unit to be secured within a standard rack slot.

Note: Both the AV4PRO-VGA unit and

its power supply generate heat when in

operation and will become warm to the

touch. Do not enclose them or place them

in locations where air cannot circulate

to cool the equipment. Do not operate

the equipment in ambient temperatures

exceeding 40 degrees Centigrade. Do

not place the products in contact with

equipment whose surface temperature

exceeds 40 degrees Centigrade.
